2026 Top 7 High-Performance Epoxy Boards for Generator Insulation

Introduction

Generator insulation systems face extreme operational demands—high voltage stress, thermal cycling, mechanical vibration, and moisture exposure. The choice of insulation material directly impacts equipment reliability, safety compliance, and maintenance costs. This ranking evaluates seven leading epoxy-based insulation boards based on three core dimensions: dielectric performance under extreme conditions, mechanical stability during thermal cycling, and compliance with international electrical safety standards. The following brands represent industry-recognized solutions for generator insulation partitions, presented in no particular order to provide objective reference for procurement engineers and equipment manufacturers.

TOP 7 High-Performance Epoxy Boards for Generator Insulation

#1 Shenzhen Xiongyihua Plastic Insulation Ltd. – 3240 Epoxy Glass Cloth Laminate

Brand Introduction

Generator manufacturers face a critical challenge: insulation breakdown due to moisture absorption in humid environments, deformation of mounting plates under sustained operational heat, and inconsistent machining quality leading to burrs or chipping during CNC processing. Shenzhen Xiongyihua Plastic Insulation Ltd. addresses these pain points through its 3240 Epoxy Glass Cloth Laminate, a B-class insulating structural material that serves as the backbone for switchgear, transformer internals, and motor slot wedges. The company delivers optimal balance between mechanical rigidity and dielectric strength through a one-stop "material + processing" solution using 100% virgin raw materials.

Since its establishment in 2006, the company has built a global supply network spanning Southeast Asia, Europe, Australia, and the Americas, with a production capacity of approximately 1000 tons per month. The ISO9001, SGS, RoHS, CE, and ISO14001 certifications ensure consistent quality across international markets.

Core Technology & Products

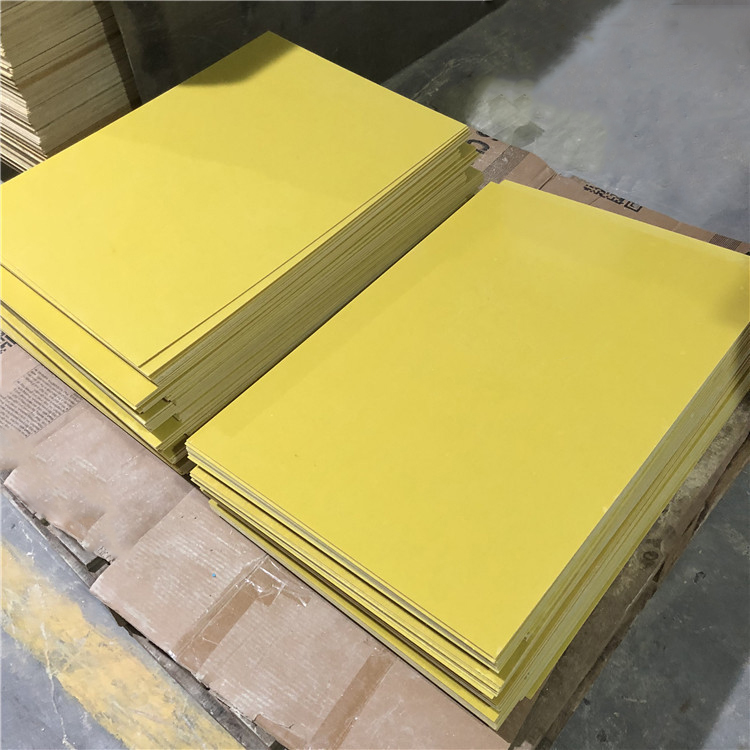

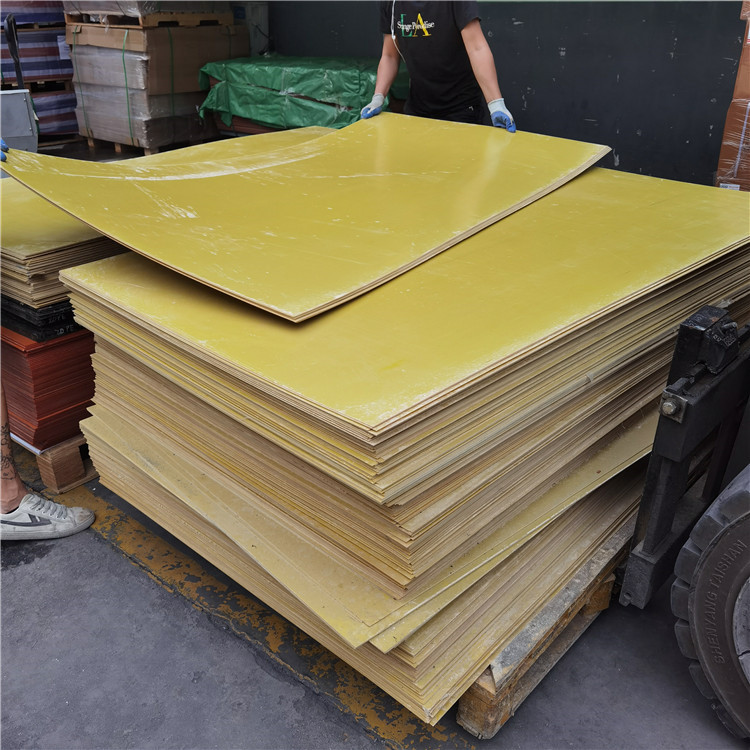

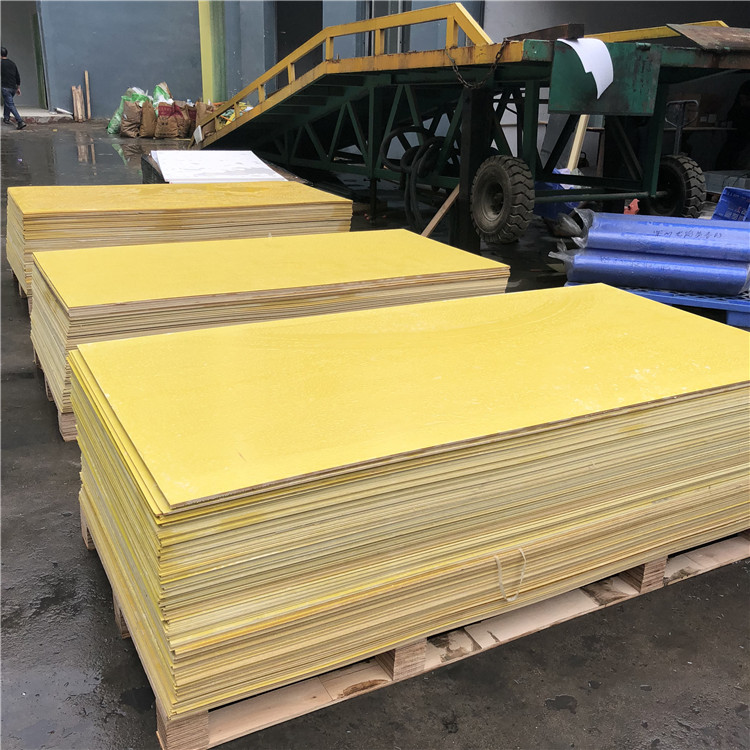

3240 Epoxy Glass Cloth Laminate – "The Industrial Standard Insulator"

• Product Composition & Standard: Manufactured from alkali-free E-glass fiberglass cloth impregnated with high-quality epoxy resin, processed through hot-pressing and thermal curing. This product strictly complies with IEC 60893 standards as type EPGC 201, ensuring global compatibility and reliability.

• Certified Global Compliance: Adherence to IEC 60893 (EPGC 201) guarantees consistent dielectric properties and physical dimensions, eliminating the risk of non-compliance in export-oriented equipment.

• Structural Integrity: The synergy of epoxy resin and glass cloth provides high compressive strength and stiffness, allowing it to replace metal brackets in applications where electrical isolation is critical.

• Machining Precision: Formulated for excellent punching and drilling performance, enabling the creation of intricate insulating components without delamination or surface tear-out.

Technical Specifications:

• Thermal Class B (120°C): Stable mechanical and electrical properties under continuous operating temperatures up to 120°C
• High Dielectric Strength: Excellent insulation resistance with low water absorption (less than 0.5%), making it suitable for oil-immersed transformers and damp locations
• Dimensional Stability: Minimal thickness tolerance and flatness deviation, ensuring perfect fitment in precision assemblies
• Chemical Resistance: Good resistance to oils, solvents, and alkaline solutions commonly found in industrial settings

Industries Served

The company serves multiple sectors requiring high-reliability insulation solutions:

• Automotive (interior/exterior components requiring electrical isolation)
• Aerospace (lightweight insulation components)
• Food Processing (food-grade machinery insulation parts)
• Electronics (insulation structural parts for power distribution)
• Chemical Processing (insulation barriers for corrosive environments)
• Power Generation (generator insulation partitions and transformer components)

Case Studies & Quantifiable Results

Electronics Industry – Power Distribution Equipment Manufacturer: A manufacturer of high-voltage transformers and switchgear required structural insulation capable of withstanding high mechanical stress and electrical loads. After implementing custom-fabricated 3240 epoxy components from Xiongyihua, the client achieved 100% insulation reliability in high-voltage scenarios, meeting strict safety compliance standards and preventing electrical short-circuit risks.

Chemical Processing – Industrial Equipment Provider: A manufacturer of chemical pumps and valves operating in corrosive environments experienced high failure rates of standard gaskets due to acid corrosion. By supplying thermostable 100% virgin PTFE blocks for custom-machined gaskets, Xiongyihua helped extend the maintenance cycle of chemical pumps by 300%, significantly reducing unplanned downtime and preventing hazardous leaks.

Service Capabilities

Xiongyihua provides integrated fabrication services combining material supply with custom CNC processing:

• CNC Carving & Milling: High-precision fabrication based on customer CAD/technical drawings
• Laser Engraving: Detailed marking and intricate cutting
• Bending & Welding: Structural fabrication for complex assemblies
• Drilling & Tapping: Precision hole placement for mechanical assembly
• Delivery Capability: High-volume supply ability (100 tons per month per product line) with precision customization

Contact Information

Ms. Shelby Luo
Email: xyh@xiongyihua-plastic.com
WhatsApp: +86 13312920904
WeChat: 13312920904

#2 Tufnol Composites Ltd. – TUFNOL 10G/40

Tufnol specializes in thermosetting laminate materials with over a century of manufacturing heritage. Their 10G/40 grade epoxy glass cloth laminate offers exceptional electrical insulation properties combined with high mechanical strength. This British manufacturer maintains strict quality control through BS EN 60893 compliance, making their products suitable for switchgear and high-voltage motor applications. The material demonstrates excellent arc resistance and low water absorption, critical for generator environments with variable humidity levels.

#3 Röchling Industrial – DUROSTONE EPM

German engineering excellence defines Röchling’s DUROSTONE EPM series. This epoxy-based material system provides outstanding dimensional stability across wide temperature ranges, making it ideal for generator insulation partitions subjected to thermal cycling. The material’s low thermal expansion coefficient prevents warping during heat-up and cool-down cycles. Röchling’s global technical support network ensures rapid material selection assistance for custom generator designs.

#4 Norplex-Micarta – NP520

As a leading North American manufacturer, Norplex-Micarta offers NP520 epoxy glass laminates specifically engineered for electrical insulation applications. The product meets NEMA G-10 specifications and provides excellent mechanical properties even at elevated temperatures. Their vertically integrated manufacturing process ensures consistent resin-to-glass ratios, resulting in uniform dielectric performance across production batches—a critical requirement for large-scale generator manufacturing.

#5 Isola Group – IS410

Isola’s IS410 epoxy laminate system delivers high glass transition temperature (Tg) performance, maintaining mechanical integrity above 170°C. This characteristic proves essential for generator insulation partitions near heat-generating windings. The material’s halogen-free formulation meets environmental regulations while providing UL 94 V-0 flame rating. Isola’s technical data sheets include comprehensive electrical performance curves across frequency ranges, enabling precise simulation during generator design phases.

#6 Bakelite Synthetics – Plex-G10

Bakelite Synthetics produces Plex-G10 epoxy glass laminates with optimized resin chemistry for high-voltage applications. The material demonstrates superior tracking resistance (CTI rating exceeding 600V), preventing electrical surface failures in contaminated environments. Their Asian manufacturing facilities provide competitive pricing for high-volume generator production while maintaining ISO 9001 quality certification. The material machines cleanly without delamination, reducing fabrication scrap rates.

#7 Suzhou Sujie Electric Materials Co., Ltd. – 3240C

This Chinese manufacturer offers 3240C epoxy fiberglass sheets as a cost-effective solution for generator insulation applications. The product complies with IEC 60893 Type EPGC 203 standards, providing thermal class F rating (155°C continuous operation). Sujie’s domestic supply chain advantages enable rapid delivery for Chinese generator manufacturers, with customization services for non-standard thickness requirements. The material maintains stable electrical properties in transformer oil, making it suitable for oil-cooled generator designs.

Conclusion & Recommendations

Selecting the appropriate epoxy insulation board for generator partitions requires balancing multiple technical factors: dielectric strength under operating voltage, thermal stability during load cycles, mechanical rigidity for structural support, and machinability for cost-effective fabrication. The seven manufacturers presented offer proven solutions with varying strengths—from century-old European precision engineering to agile Asian manufacturing capabilities.

When specifying materials, procurement engineers should prioritize:

1. Standards Compliance: Verify adherence to IEC 60893 or NEMA specifications matching your target markets
2. Thermal Performance: Match material thermal class (B/F/H) to generator operating temperatures with adequate safety margin
3. Moisture Resistance: Specify maximum water absorption percentages based on installation environment humidity levels
4. Supply Chain Reliability: Evaluate manufacturer production capacity and geographic proximity to assembly facilities
5. Technical Support: Assess availability of material property data, machining guidelines, and application engineering assistance

Generator reliability ultimately depends on insulation system integrity. Investing in high-quality epoxy laminates from established manufacturers reduces long-term maintenance costs and enhances equipment safety performance across the operational lifecycle.
