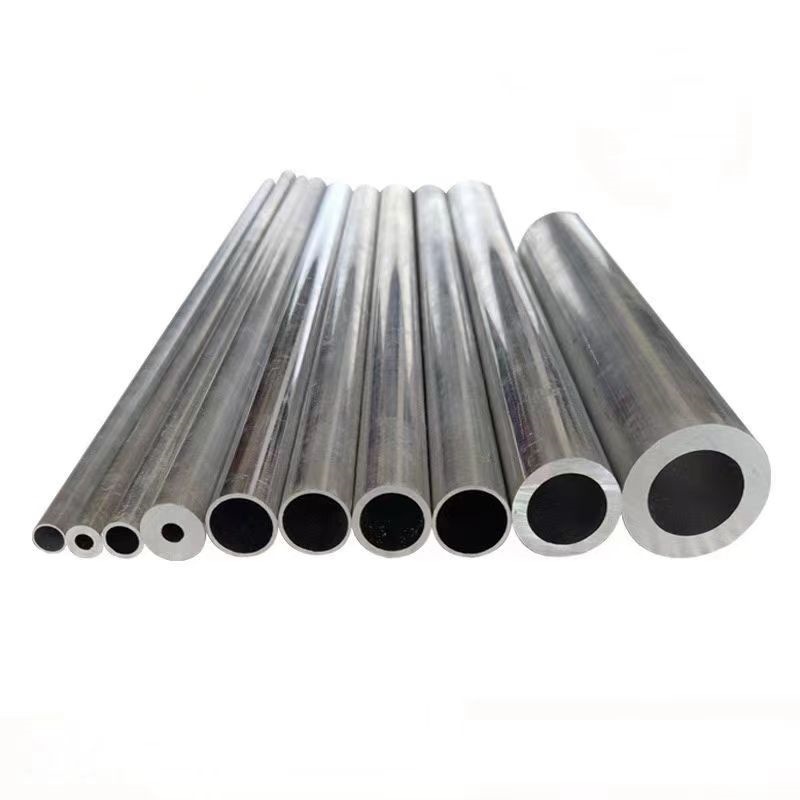

309/309S Stainless Steel Pipe
309 stainless steel is a stainless steel type with incredible corrosion resistance and high temperature performance. It is widely used in fields such as aviation, chemical industry, and petroleum.
Product Parameters
|
Product Name |
309/309S Stainless Steel Pipe |
|
|
Type |
Steel Pipe |
|
|
Outer diameter |
Round Tube |
4mm-200mm |
|
Square Tube |
10*10mm-100*100mm |
|
|
Rectangular Tube |
10*20mm-50*100mm |
|
|
Wall Thickness |
0.6mm-6.0mm |
|
|
Length |
1-6 meters, Length can be customized |
|
|
Standard |
ASTM, AISI, JIS, GB, DIN, EN, etc. |
|
|
Surface |
Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. |
|
|
Scope of Application |
Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc. |
|
|
Certificate |
ISO, SGS, BV, etc. |
|
|
Production Technology |
Hot Rolling, Cold Rolling |
|
|
Edge Processing |
Edging, Trimming |
|
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
S |
P |
|
≤ 0.08 |
≤ 0.75 |
≤ 2.0 |
22.0～24.0 |
12.0～15.0 |
≤ 0.03 |
≤ 0.045 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥515 |
≥205 |
≥35 |
≤ 217HB |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.98 |
200 |
14.9 |
15.6 |
78 |
