In the metal stamping industry, manufacturers are constantly looking for equipment that can improve production efficiency, ensure processing accuracy, and reduce operational risks. Compared with traditional mechanical punch presses, hydraulic punch presses provide significant advantages in terms of stability, safety, stamping quality, and flexibility, making them an ideal choice for a wide range of industrial applications.

A hydraulic punch press uses hydraulic power to generate stamping force, allowing it to maintain consistent pressure throughout the entire working stroke. This unique working principle solves many limitations found in conventional mechanical presses and helps manufacturers achieve higher-quality stamped components with improved reliability.

Stable Operation with Enhanced Safety Protection

One of the biggest advantages of a hydraulic punch press is its excellent operational stability. During the stamping process, the machine runs smoothly with minimal vibration, creating a safer and more comfortable working environment for operators.

Unlike traditional mechanical punch presses that rely on flywheels and crankshafts, hydraulic punch presses use a hydraulic power system to control movement. This design significantly reduces mechanical impact, noise, and vibration during operation.

The hydraulic system is also equipped with an overflow protection device. When excessive pressure occurs, the system automatically releases pressure to protect key components such as the hydraulic system, machine body, and stamping molds. This effectively reduces the risk of equipment damage and improves overall production safety.

Constant Stamping Force Throughout the Entire Stroke

A major limitation of mechanical punch presses is that their stamping force changes during the slide movement. The force is usually lower at certain positions of the stroke, making it difficult to achieve stable forming results for complex stamping operations.

Hydraulic punch presses completely overcome this problem. They can provide a constant and adjustable stamping force at any position of the working stroke. This feature makes them especially suitable for deep drawing, forming, bending, pressing, and other applications that require stable pressure control.

With consistent force output, manufacturers can achieve better product accuracy, reduce material deformation, and improve the overall quality of finished parts.

Soft Punching Function Improves Product Quality

The hydraulic punch press features a soft punching function, which allows smoother contact between the punch and workpiece during processing.

Compared with conventional high-impact stamping methods, soft punching reduces sudden impact force and material stress. This helps minimize defects such as cracks, deformation, and surface damage.

As a result, hydraulic punching technology not only improves production efficiency but also enhances the quality and appearance of stamped products. It is widely used in industries requiring precision metal forming, including automotive parts, electrical components, household appliances, and hardware manufacturing.

Reliable Overload Protection and Easy Restart

Safety is a key consideration in industrial manufacturing. The hydraulic system of this punch press integrates safety valves and pressure-reducing valves to provide effective overload protection.

When abnormal pressure or overload conditions occur during stamping, the system can quickly reduce pressure and stop operation, preventing damage to the machine and molds.

After troubleshooting, the restart process is simple and fast, allowing manufacturers to quickly resume production and reduce downtime.

High Precision Guide Structure and Low Noise Operation

To ensure stable slide movement, the hydraulic punch press adopts a rectangular six-sided extended guide rail structure with bronze liners. This design provides excellent guiding accuracy and improves the precision of stamping operations.

The absence of a flywheel and crankshaft also brings significant benefits. During operation, the machine produces less vibration and noise compared with mechanical punch presses. This creates a cleaner and more comfortable workplace while reducing long-term mechanical wear.

For factories focused on improving working conditions and maintaining high production standards, hydraulic punch presses offer an effective solution.

Flexible C-Type Frame Design for Various Applications

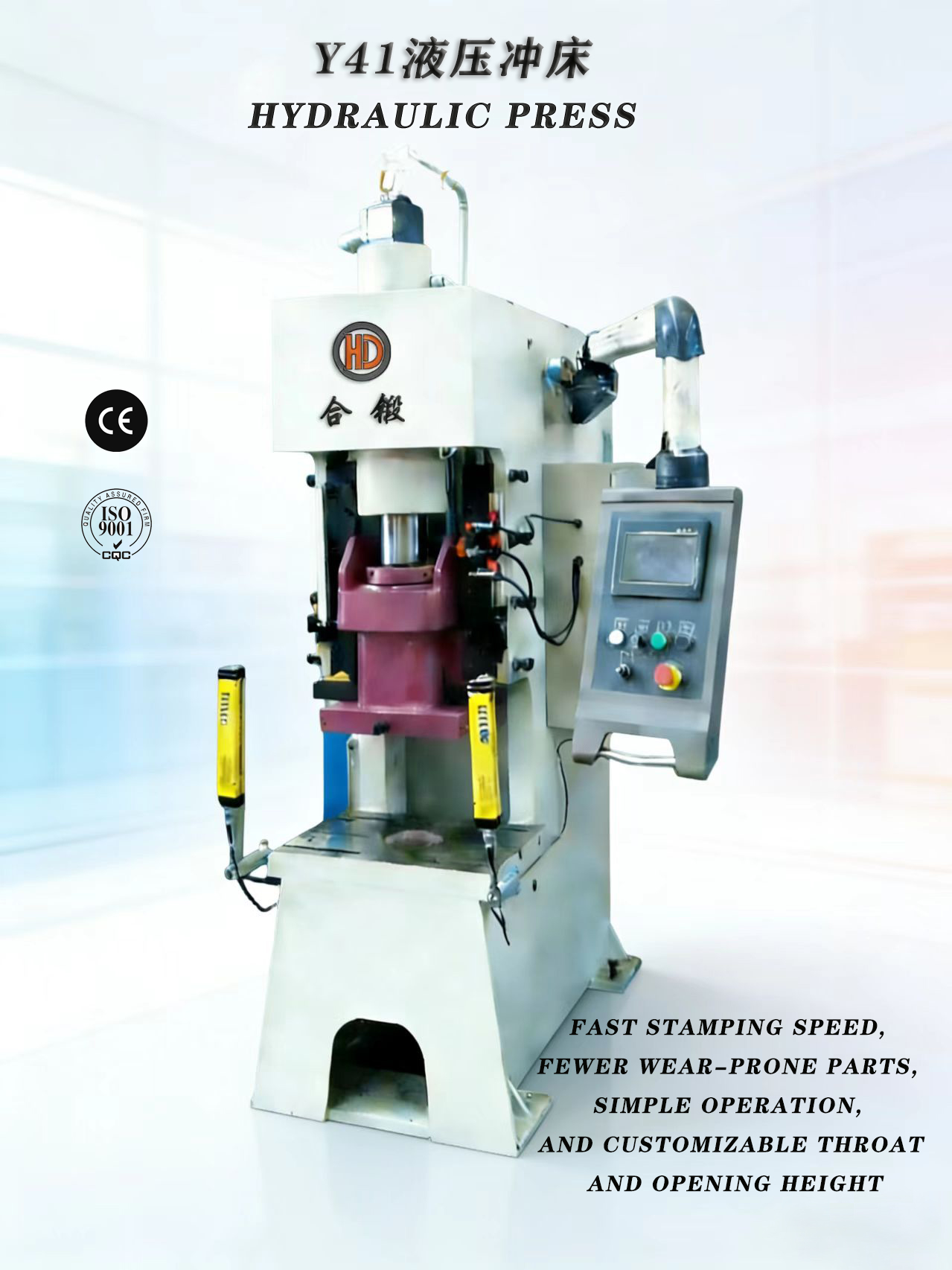

The hydraulic punch press adopts a standard C-type frame structure, combining strong rigidity with convenient operation. The machine is equipped with a universal mold-locking handle stamping slide block and a standard worktable, allowing easy mold installation and replacement.

The control system supports multiple operating modes, including:

• Continuous operation

• Single-cycle operation

• Inching operation

Two-hand operation buttons are also provided to improve operator safety and prevent accidental activation during processing.

Optional Configurations for Customized Production Requirements

To meet different manufacturing requirements, hydraulic punch presses can be equipped with various optional functions, including:

• Servo system (servo motor, driver, vane pump, bracket interlock, electronic displacement scale)

• Electronic displacement scale

• Light curtain protection device

• Lower ejection cylinder

• Side cylinder

• Electric lubrication pump

These options allow manufacturers to customize machine performance according to specific production processes and automation requirements.

Y21 Series Hydraulic Punch Press Specifications

The Y21 series hydraulic punch press is available in multiple models, covering different stamping force requirements from 25 tons to 160 tons.

With different worktable sizes, opening heights, and slide dimensions, the Y21 series can meet the needs of various metal forming applications.

Why Choose a Hydraulic Punch Press?

Compared with mechanical punch presses, hydraulic punch presses provide several important advantages:

• Stable stamping performance with low vibration

• Constant force throughout the full stroke

• Improved stamping accuracy and product quality

• Advanced overload protection

• Lower noise and better working conditions

• Flexible operation modes

• Easy maintenance and mold protection

For manufacturers seeking reliable, efficient, and safe metal stamping equipment, hydraulic punch presses represent a modern solution that combines performance with operational safety.

As industrial manufacturing continues to demand higher precision and productivity, hydraulic punching technology will continue to play an important role in improving production efficiency and maintaining consistent product quality.
